How does the solution work in detail?

Travel speed 4 m/s at 2 m/s2 acceleration Lift height Up to 1.56 m, max. 9 container levels

What are the unique selling points of this solution?

Advantages of KlinCAT® over stacker cranes High performance, multiplied throughput Flexible and scalable due to modular design Easy maintenance, every shuttle level is accessible Advantages of KlinCAT® over shuttle systems Low investment despite high performance Easy maintenance, every shuttle level is accessible Fewer devices required, as multiple levels are accessible

Klinkhammer Intralogistics GmbH

Hardware

KlinCAT® Multilevel-Shuttle

Name: KlinCAT® Multilevel-Shuttle
Brand: Klinkhammer Intralogistics GmbH

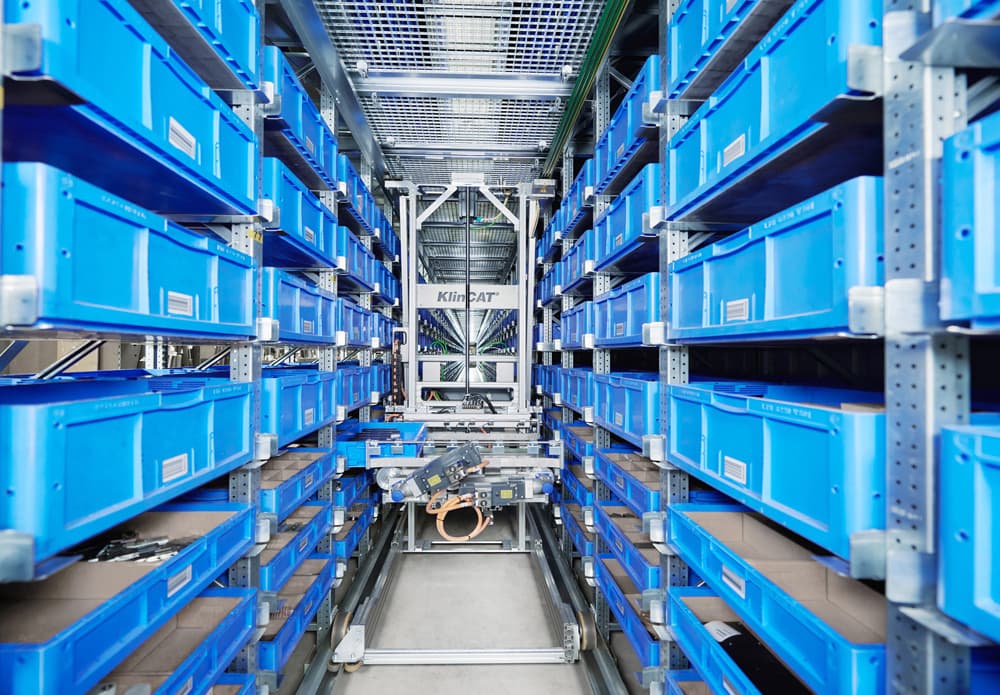

With a lifting height of up to 1.5 m, KlinCAT®, a state-of-the-art automatic shuttle system, reaches up to 9 container levels and can, like a shuttle, be deployed multiple times on top of one another. The device's load handling unit is designed for cartons, trays or containers with a maximum weight of 50 kg per load carrier.

Overview

There was a gap between the performance of an stacker crane at approximately 120 dual cycles per aisle per hour and that of a classic shuttle solution at up to 1,000 dual cycles per aisle per hour. KlinCAT® addresses this gap. With a lifting height of approximately 1.5 m, each KlinCAT reaches up to nine container levels and can be deployed multiple times on top of one another in each aisle. The throughput of a single-aisle, double-deep automated small-parts warehouse with, for example, 12 m height and 35 m length, designed for cartons, trays or containers, can be increased by more than three times compared to a classic stacker crane. KlinCAT® is distinguished by its compact design and low weight, contributing significantly to improved dynamics and higher throughput performance. Compared to stacker cranes at approximately 5 m/s and shuttle systems at approximately 2 m/s, KlinCAT® achieves a powerful 4 m/s. Further advantages include: minimal lower and upper approach dimensions for high storage density, an innovative energy-efficient drive concept, and low maintenance and investment costs.
